Core functions and application scenarios
● Process capability: precision pressing, shaping, punching, riveting, etc., supporting precise control of pressure, displacement, and speed.
● Applicable industries: automotive parts, electronic equipment, precision hardware, medical equipment, aerospace parts and other industries.
Key Structure and Configuration

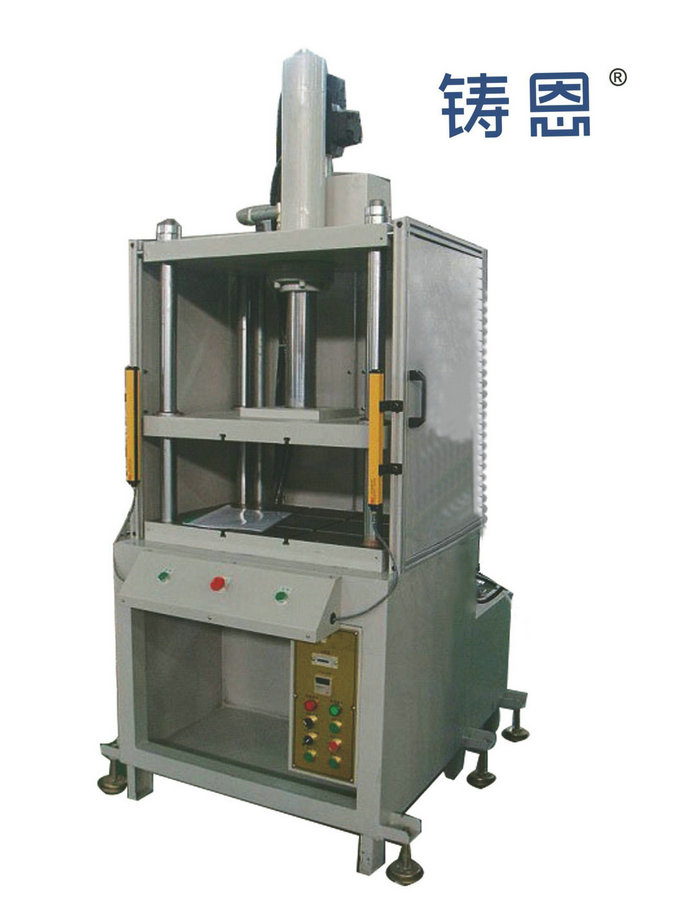

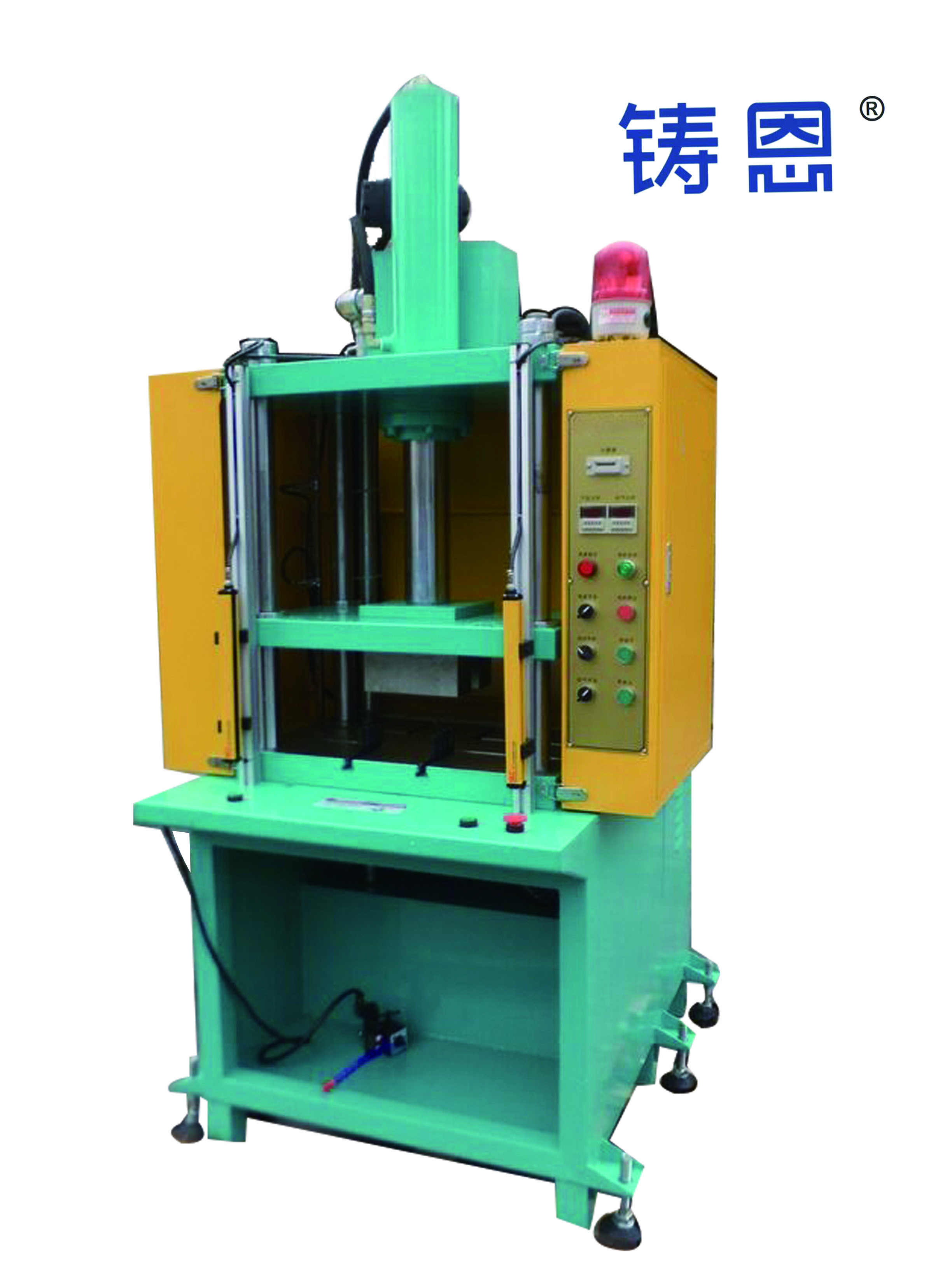

● Body: Bow shaped design with strong rigidity and small footprint; The four pillar model has uniform force distribution and good stability, suitable for large tonnage processing.
● Drive system: CNC hydraulic system+imported servo motor, stable power, precise adjustment, low noise.
● Control system: PLC numerical control+touch screen, supports multi-mode switching, can preset parameters, and batch production.
● Auxiliary configuration: Equipped with high-precision sensors and linear guides as standard, optional grating ruler and automatic loading and unloading mechanism.
● Mold system: Suitable for customized precision molds, accurate positioning, wear-resistant, and can be quickly replaced.
Product Models and Key Specifications
|
Model |
Structure Type |
Nominal Pressure |
Maximum Stroke |
Workbench Dimensions |
Power |
Control Accuracy |
Pressing Speed |
|
ZHUEN-107 (Bow-shaped) |
Bow-shaped cast steel |
30-100 T |
100-300 mm |
600×500-1000×800 mm |
5.5–15 kW |
±0.01 mm |
0.1–5 mm/s (adjustable) |
|
ZHUEN-105 (Four-post) |
Four-post cast steel |
50–200 T |
150–400 mm |
800×800–1500×1200 mm |
7.5–22 kW |
±0.01 mm |
0.1–5 mm/s (adjustable) |
Note: Core parameters of this series can be customized to suit different machining scenarios.
Performance Features and Advantages
● High Precision: Control accuracy of ±0.01 mm ensures excellent machining consistency and improves product yield. ● High Efficiency: High degree of automation boosts production efficiency by over 40% compared to traditional hydraulic presses.
● High Durability: Cast steel frame + imported core components ensure low failure rates and a long service life.
● Easy Operation: Touchscreen interface, automatic fault diagnosis, and convenient loading/unloading.
● Energy Efficiency: Servo-driven system saves 30%-50% more energy than traditional hydraulic presses.
Safety and Compliance Standards
● Safety Features: Standard emergency stop, two-hand control, safety guards, and overload/limit switches ensure safety.
Customization and Service Information
● Customization Services: Comprehensive parameter customization is supported to create tailored solutions.
● After-Sales Support: Free installation, commissioning, and training; 12-month warranty; free repair and replacement of core components.
● Value-Added Services: Lifetime technical support and spare parts supply; optional functional upgrades for intelligent system enhancements.
